KPH SDR Receivers
There are a total of seven GPS disciplined Kiwi receivers available. One receiver is connected to a shielded loop antenna and is dedicated to LF/MF reception. Six receivers are connected to the TCI-530 antenna for 3 to 30MHz reception.
The LF/MF Kiwi is HERE
The HF Kiwis are HERE
Enjoy!
The receive site at Point Reyes was selected by none other than Dr. Harold Beverage. He was looking for a a location at the edge of the ocean with plenty of flat land for antennas and a very low electrical noise level for point to point HF reception. The site that became knows as RS on the order wire fit the bill. The station began service in 1930. Coast station KPH moved to the site in 1946.
Scroll down below the photo for a listing of the KPH/KFS transmitting frequencies along with their associated ship calling frequencies.

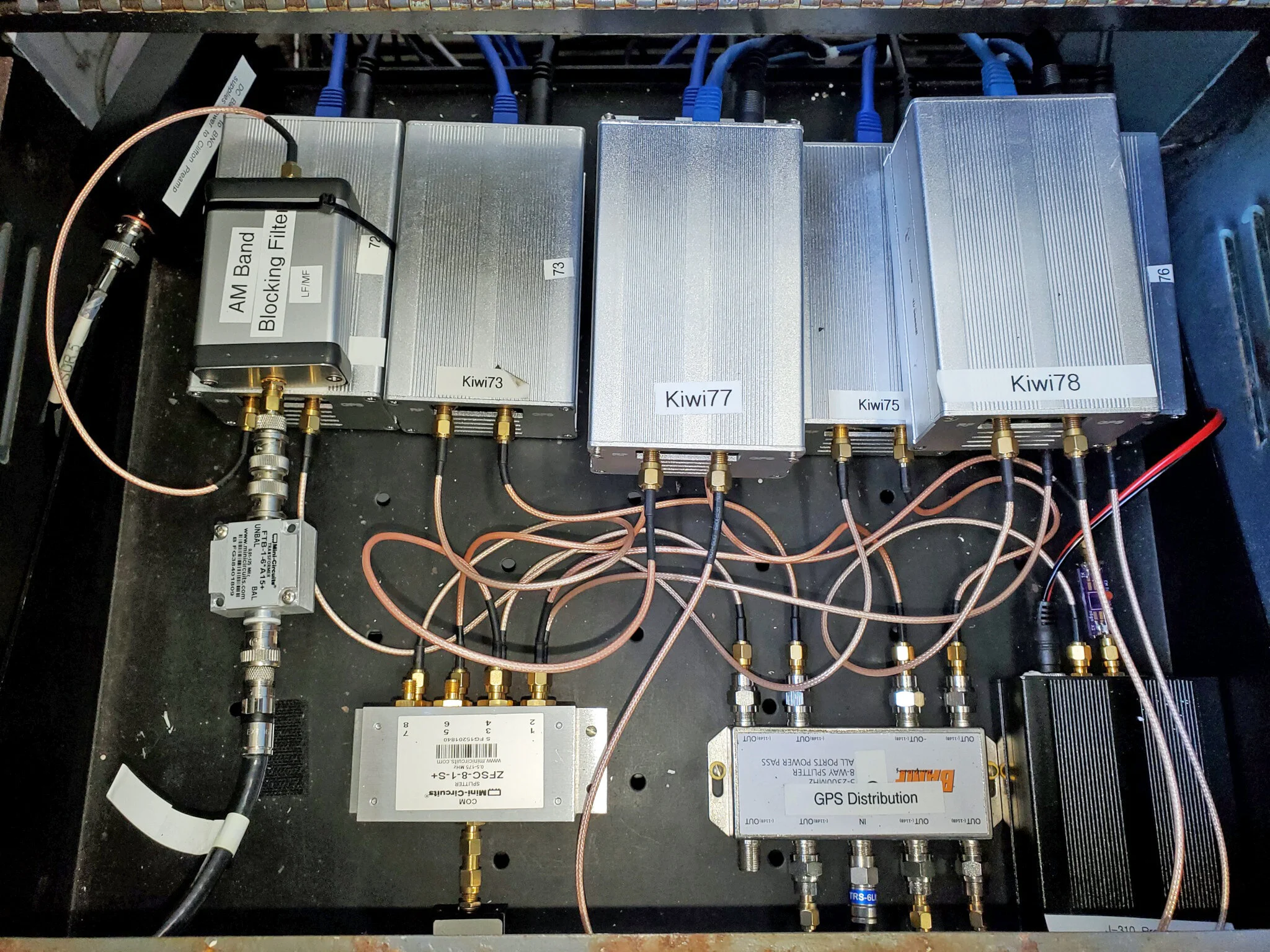

Seven Kiwi receivers and auxiliary equipment at the KPH receive site
Listen Live to the KPH/KFS transmitting frequencies and the associated ship calling frequencies.
Marine Morse communication is duplex (except for 500kc). Want to hear both sides of a ship contact with KPH or KFS. We have you covered.
Click below to be taken directly to a KPH SDR tuned to each KPH and KFS transmitting frequency. Below that frequency is the ship calling frequency. If you hear KPH or KFS in contact with a ship, click on the associated calling frequency to hear the ship.
Note: The 12Mc and 16Mc frequencies are usually the most active.
Use your browser’s <= button to return to the MRHS site after listening to these transmissions.
KPH 4Mc - 4247.0
Ship - 4184.0
KPH 6Mc - 6477.5
Ship - 6276.0
KPH 8Mc - 8642.0
Ship - 8368.0
KPH 12Mc - 12808.5
KFS 12Mc - 12695.5
Ship - 12522.0
KPH 16Mc - 17016.8
Ship - 16736.0
KPH 22Mc - 22477.5
Ship - 22280.5
